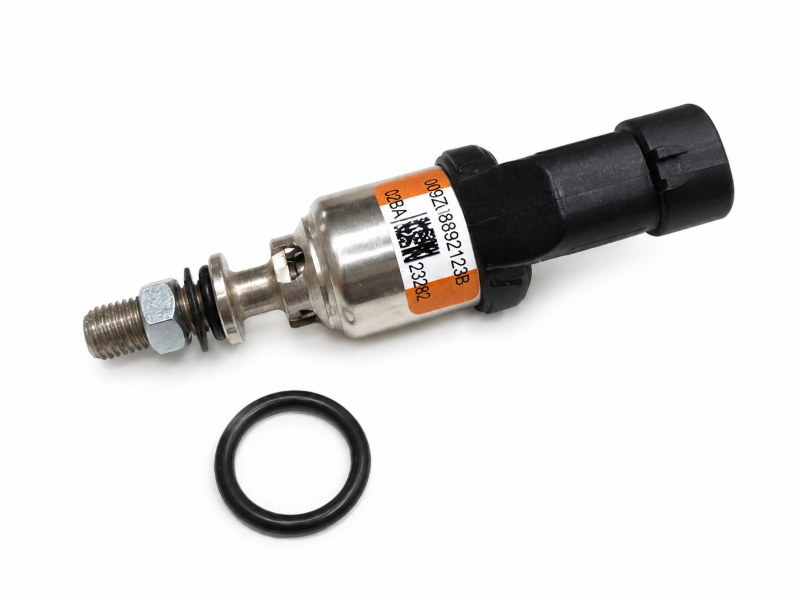

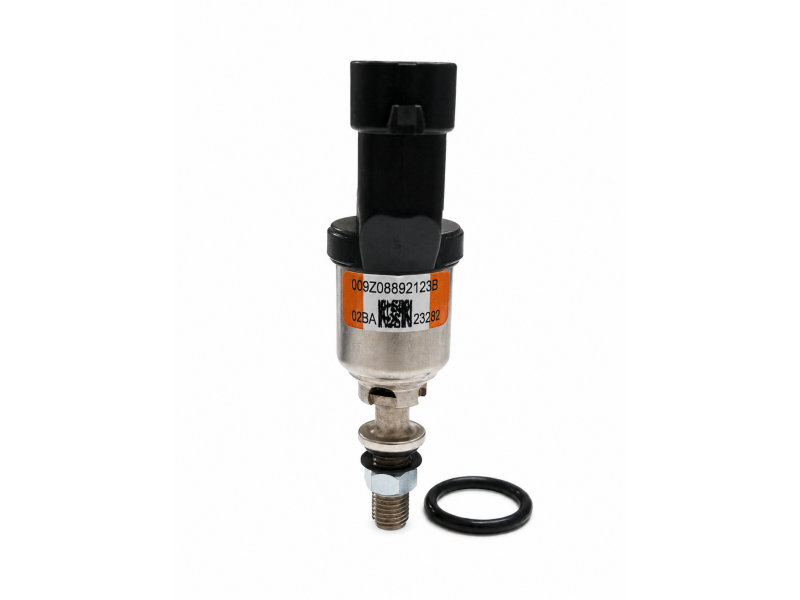

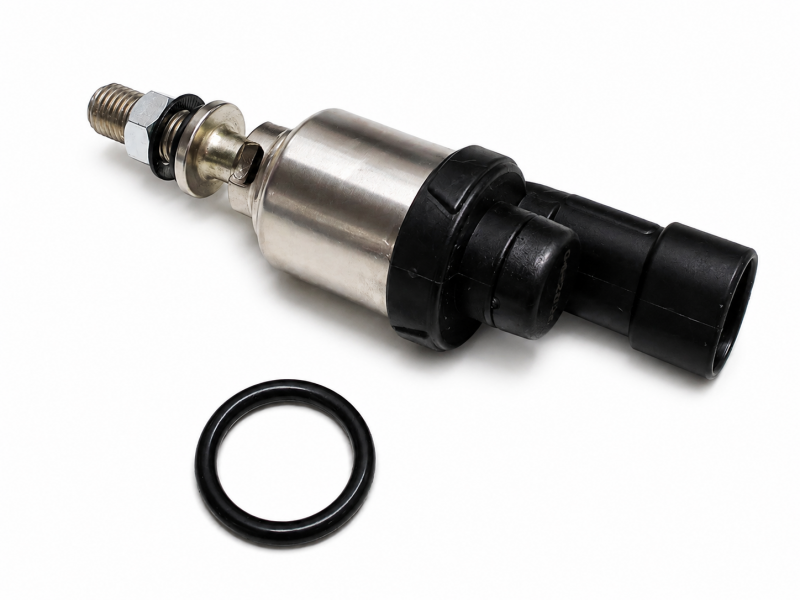

BRC INO3 MAX TYPE ORANGE INJECTOR (OLD MODEL - AFTERMARKET), INJB044N
BRC INO3 orange LPG injector, old model with nut, is an aftermarket replacement part compatible with BRC LPG systems that use Max Type injectors. This orange version is a medium power LPG injector used on several BRC systems, including Sequent 56, Sequent 24 MY07, Sequent 24.11, Sequent Plug&Drive, Sequent Fast, SDI and other compatible installations.
The BRC INO3 orange injector is bottom-fed, a design that helps improve reliability because gas impurities do not pass through the entire injector body. This contributes to cleaner and more stable LPG system operation, especially when the system is properly maintained and LPG filters are replaced on time.
This model is recommended for replacing old, worn or faulty injectors on compatible BRC LPG systems. Being an aftermarket version, it is a practical and cost-effective solution for LPG workshops and vehicle owners looking for a compatible injector with specifications suitable for BRC systems.
For proper operation, we recommend checking the old injector part number, injector colour, connector type, fixing type and LPG system compatibility before ordering. After installation, LPG system calibration should be performed by a qualified LPG technician.
Compatibility
The BRC INO3 orange LPG injector, old model with nut, is used with BRC LPG systems such as:
- BRC Sequent 56
- BRC Sequent 24 MY07
- BRC Sequent 24.11
- BRC Sequent Plug&Drive
- BRC Sequent Fast
- BRC SDI
- Other BRC systems compatible with INO3 Normal Type injectors
Part Number
09SQ99020002G, INJB044N
Technical Specifications
- Product type: aftermarket LPG injector
- Model: BRC INO3 orange, old model with nut
- Injector type: Max Type
- Power range: medium power
- Feeding type: bottom-fed
- Impedance: 2.04 Ω / 2.35 mH at 20 °C
- Operating temperature: -40 °C to 120 °C
- Voltage range: 6 V to 16 V
- Sealing: rubber on metal
Approvals
- LPG: E13 67R-010223
- CNG: E13 110R-000041
| Injector Type | Engine | Genius MB800 | Genius MB1200 | Genius MB1500 | Genius MAX |
|---|---|---|---|---|---|
| Normal Type | Aspirated | 23 HP/cyl. | 28 HP/cyl. | 31 HP/cyl. | - |
| Normal Type | Supercharged / Turbo | 30 HP/cyl. | 35 HP/cyl. | 38 HP/cyl. | - |
| Max Type | Aspirated | - | 35 HP/cyl. | 40 HP/cyl. | 40 HP/cyl. |
| Max Type | Supercharged / Turbo | - | 43 HP/cyl. | 48 HP/cyl. | 48 HP/cyl. |
| Super Max Type | Aspirated | - | - | 47 HP/cyl. | 47 HP/cyl. |
| Super Max Type | Supercharged / Turbo | - | - | 56 HP/cyl. | 56 HP/cyl. |
