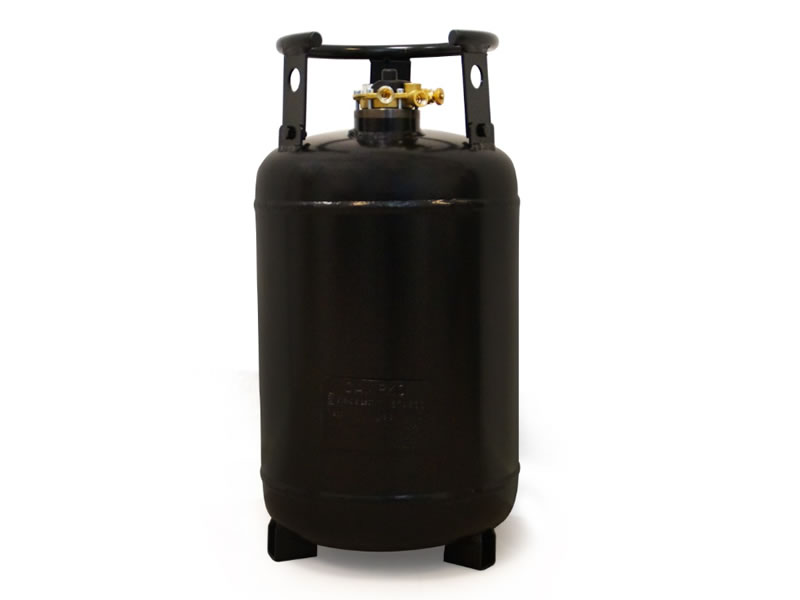

Refillable gas bottle 30/24 litres with 80% multivalve and level sensor (M12x1)

Refillable gas bottle 30/24 litres with 80% multivalve and level sensor (M12x1), CAM-112547

The 67R-01 homologated gas cylinder can be refilled flexibly and directly thanks to the integrated multivalve with automatic 80% filling stop. A fixed installation in a caravan or mobile home is possible by means of the foot mounting, as well as the use as a mobile container (please pay attention to the respective country specific regulations). The pre-assembled collar can be screwed off.

Its size is equal to the classic 11 kg stove cylinder - 585 height x 300 diameter (570 height without collar).

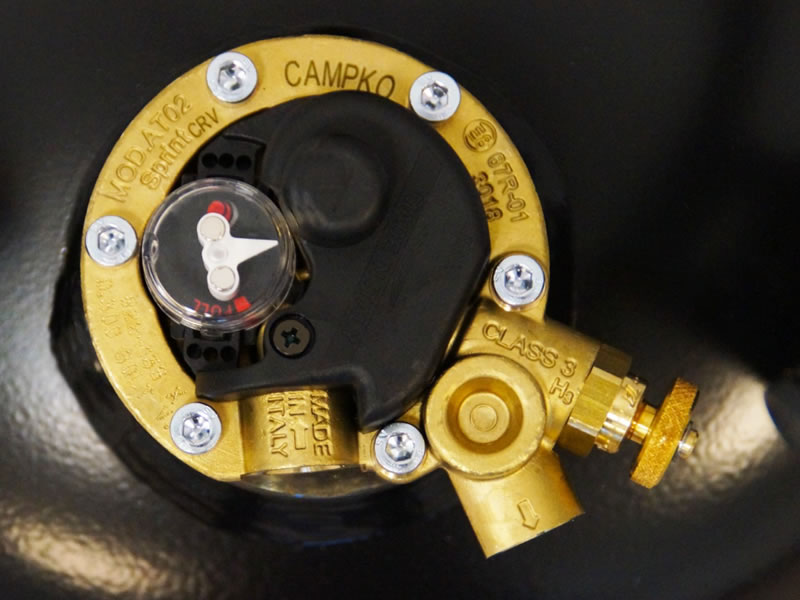

Unlike the classic stove cylinder, the Campko cylinder is provided with a multivalve limiting the filling capacity (to 80% - 24 liters) which ensures increased safety - there is no risk of explosion, leaks or deformation due to the expansion of the gas when heated. Also, the multivalve is provided with a safety valve that allows the controlled evacuation of the gas in case of overpressure (27 bars).

The cylinder is provided with 3 legs with holes with the help of which it can be fixed to the floor.

Optionally, support for fixing caravans or motorhomes in the garage, filling point, hoses, LPG filter, power adapter, bluetooth level sensor.

Material  Steel

Inspection interval unrestricted

80% filling stop valve  included

Safety valve 27 bar pressure relief valve

Tare weight 16,00 Kg

Filling & extraction  separate

Full level indicator included

Remote level indicator retrofitting possible

Inlet M12x1 (for 8 mm cooper pipe)

Outlet M12x1 (for 8 mm cooper pipe)

Gross filling weight 30,00 liters

Net filling weight (80%) 24,00 liters

Height 585 mm

Height (without collar) 570 mm

Diameter 300 mm

Homologation  ECE 67 R
