- Stock: In Stock
- Reward Points: 76
- Model: WGM30311AH-V2

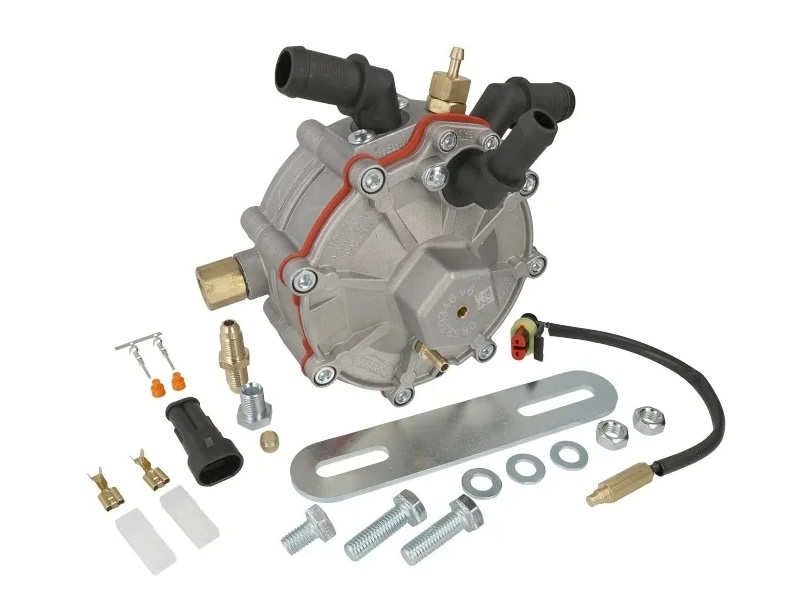

AC R01 REDUCER 180 HP + SOLENOID VALVE 6X6 MM, WGM30311AH-V2
The AC STAG R01 reducer 180 HP without solenoid valve is designed for sequential LPG injection systems in vapor phase. It ensures efficient gas vaporization and maintains stable pressure to the injectors, contributing to optimal engine performance.
This version includes a temperature sensor, but is supplied without a solenoid valve.
Key Features:
- Maximum power: 180 HP
- Model: STAG R01
- System type: sequential LPG injection (vapor phase)
- Adjustable outlet pressure: 0.9 – 1.3 bar
- Gas inlet diameter: 6 mm
- Gas outlet diameter: 12 mm
- Water connection: 16 mm
- Includes temperature sensor
- Compact design for easy installation
Equipment:
- No solenoid valve included
- No integrated filter
- Temperature sensor included
Performance:
The STAG R01 reducer provides:
- Stable pressure in all operating conditions
- Precise fuel dosing to injectors
- Fast response to acceleration and load changes
- Proper gas vaporization even at low temperatures
It works отлично with both naturally aspirated and turbocharged engines, ensuring reliable operation regardless of driving style or vehicle load.
Advantages:
- Stable working pressure
- High performance under varying conditions
- Resistant to pressure fluctuations and impurities
- Compact size for tight engine bays
- Durable and modern construction
- Rotating connections for easier installation
Design & Technology:
The STAG R01 is a single-stage diaphragm reducer with water/gas heat exchange. It combines:
- fast response to load changes
- high pressure stability
The advanced heat exchange system reduces contamination and minimizes the risk of reducer clogging.
Technical Specifications:
- Max inlet pressure: 3 MPa
- Outlet pressure: 0.9 – 1.3 bar (adjustable)
- Material: aluminum alloy
- Dimensions: 146 x 141 x 111 mm
- Weight: ~1100 g
- Vacuum connection: 4 mm
- Approval: E4-67R-01 4619
Benefits:
- Smooth and dynamic driving
- Optimized fuel consumption
- Stable engine operation
- Long-term reliability
