- Stock: In Stock
- Reward Points: 157
- Model: 4111083000102675

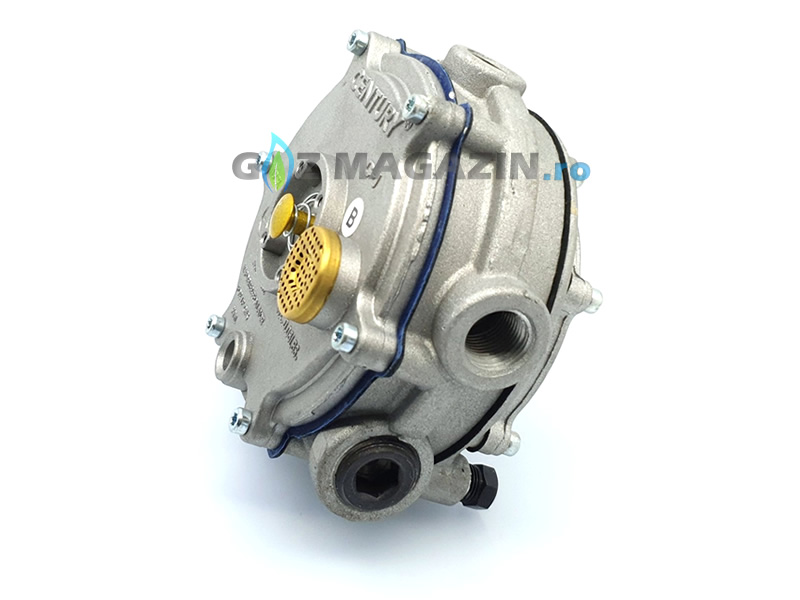

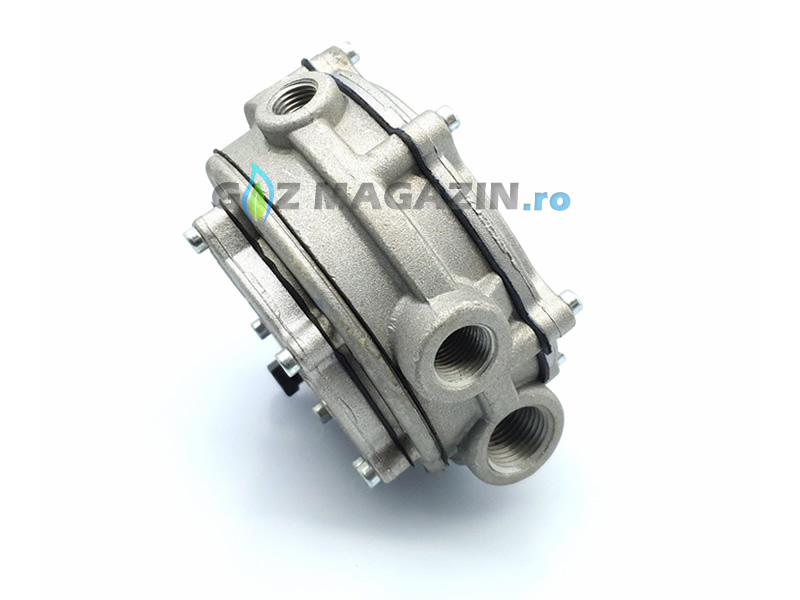

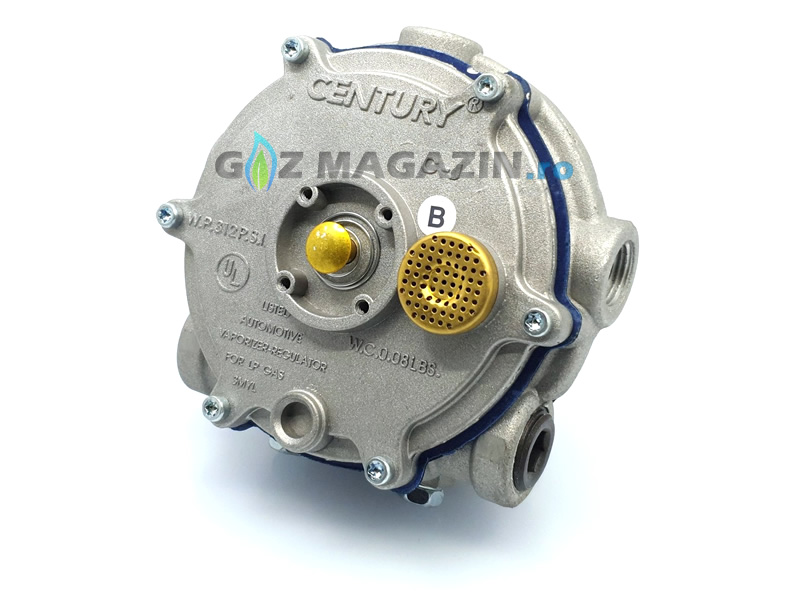

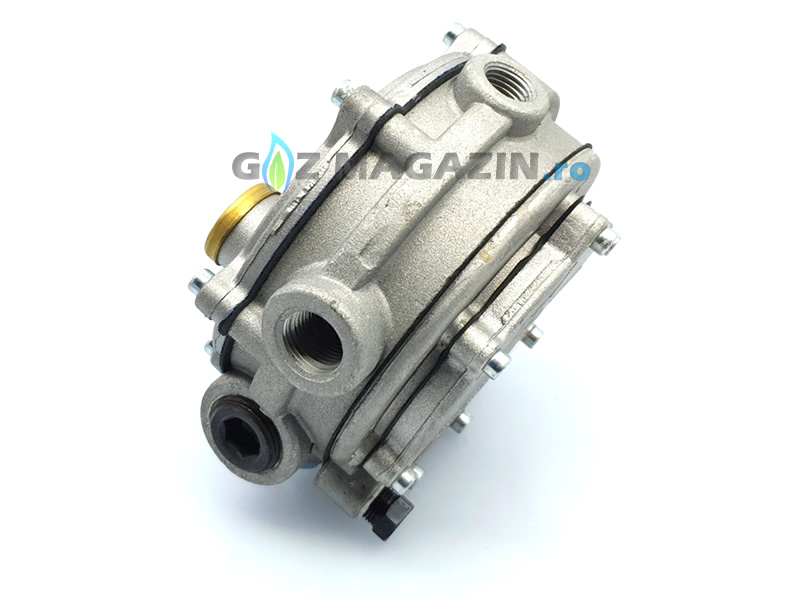

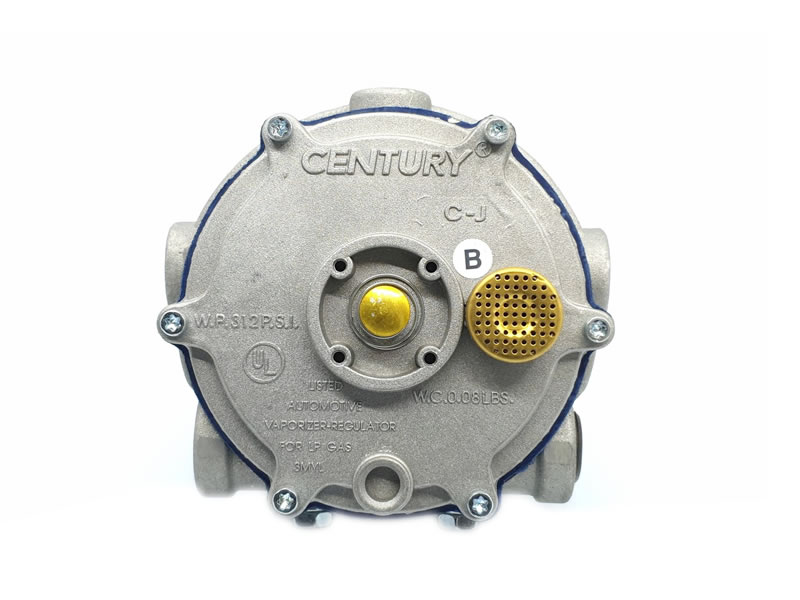

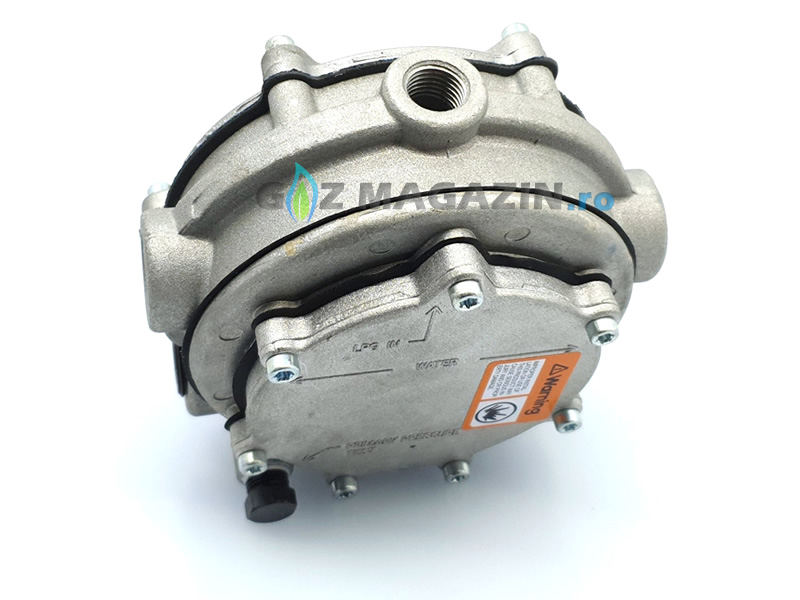

IMPCO JB-2 REDUCER, 4111083000102675
Used for LPG forklifts.
The Impco JB 2 reducer (regulator/vaporizer) delivers superior performance and excellent pressure output consistency. Cobra offers greater service life and is ideal for applications with controlled emissions. Its primary pin design and fluorosilicone diaphragm offer superior chemical resistance, resistance to over pressurization, and cold weather operation. Use of the standard blue secondary spring provides -1.5” w.c. (0.37 kPa). The optional orange secondary spring, provides -0.5” w.c. (0.12 kPa) output.
Specifications:
Fuel Type - LPG (Liquid or Vapor)
Inlet Pressure
Maximum 312 PSI (21.51 Bar)
Minimum 30 PSI (207 kPa)
Nominal Outlet Pressure
Standard -1.5” Water Column (0.37 kPa) – Blue Spring
Optional -0.5” Water Column (0.12 kPa) – Orange Spring
HP/kW 100 hp (75 kW)
Operating Temperature -40°F to +250°F (-40°C to +121°C)
Fuel Filtration (required) 40 micron
Heating Chamber Source Required for liquid LPG
