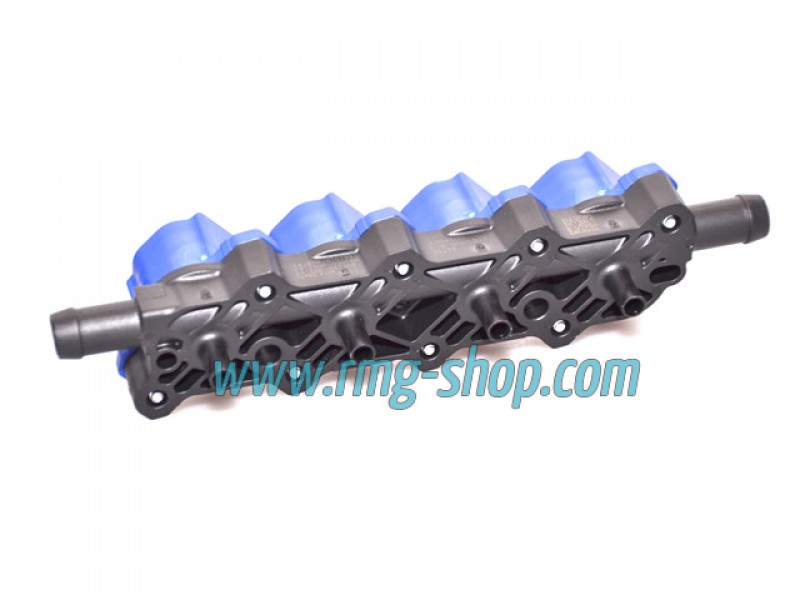

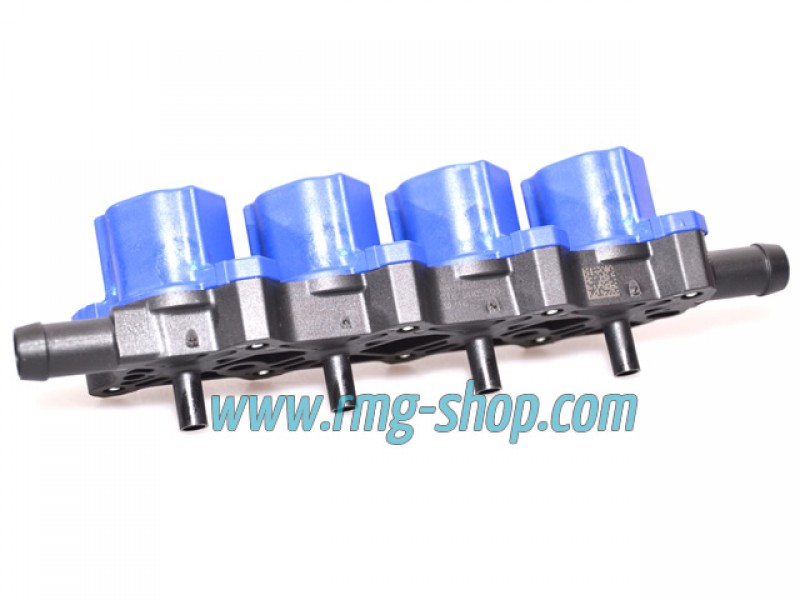

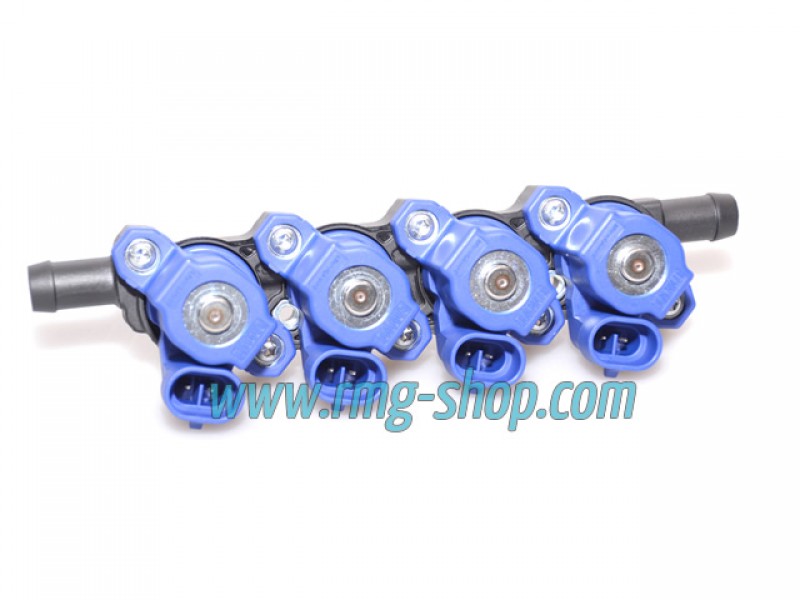

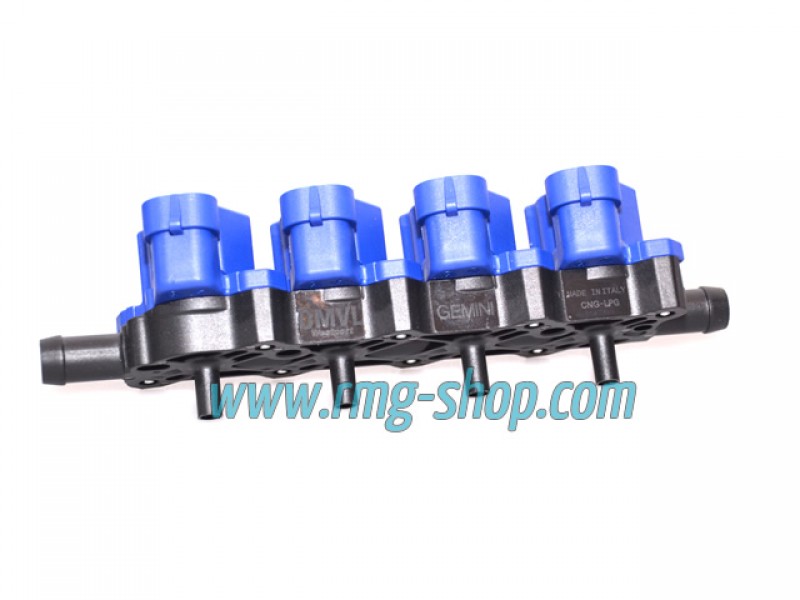

OMVL GEMINI 4 CYLINDER INJECTOR RAIL, I0000
Includes intake manifold nozzles, rubber mounts for grip, wormdrive clamps and temperature sensor adapter.
| Material | Plastic |
|---|---|
| Linearity | ±5% from 2,2 ms of injection time |
| External leakage | < 15 cc/h |
| Inductance | 4,4 mH |
| Resistance | 1,75 ± 5% Ω |
| Voltage | 8 » 16 Vdc |
| Electrical connection | AMP SuperSeal 1.5 connector |
| Operating temperature (environment) | -40 °C » +120 °C |
| Operating temperature (gas) | -20 °C » +90 °C |
| Max. working pressure | 0,6 » 4,0 barg |
| Burst pressure | 6,75 bar for 5 minutes |
| Max. gas flow rate | Up to 8 kg/h of LPG @ 1 barg Up to 9 kg/h of CNG @ 2 barg |
| Minimum opening time @ 13,5 V | 1,8 ms @ 1 barg 1,9 ms @ 2 barg |
| Gas inlet | Male connection for rubber hose with internal diameter 12 mm |
| Gas outlet | Male connection for rubber hose with internal diameter 6 mm |
| Weight | 365 g |
| Approvals | UN ECE R110-R03 CNG vehicles UN ECE R67-R04 LPG vehicles ECE10R-02 |
