REAGAS MP48 FRONT KIT - 4 CYL. (150 HP)

REAGAS MP48 FRONT KIT - 4 CYL. (150 HP), 4111083000102669

Reagas MP48 front kit with Autogas Italia RPG 09 reducer (110kw - 150 HP) and AEB injectors for 2,3 or 4-cylinder vehicles with indirect sequential multipoint injection.

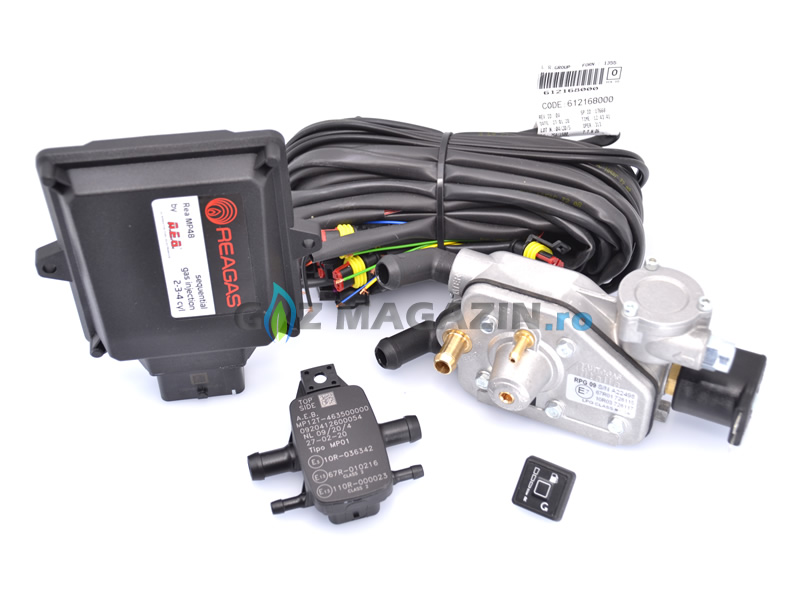

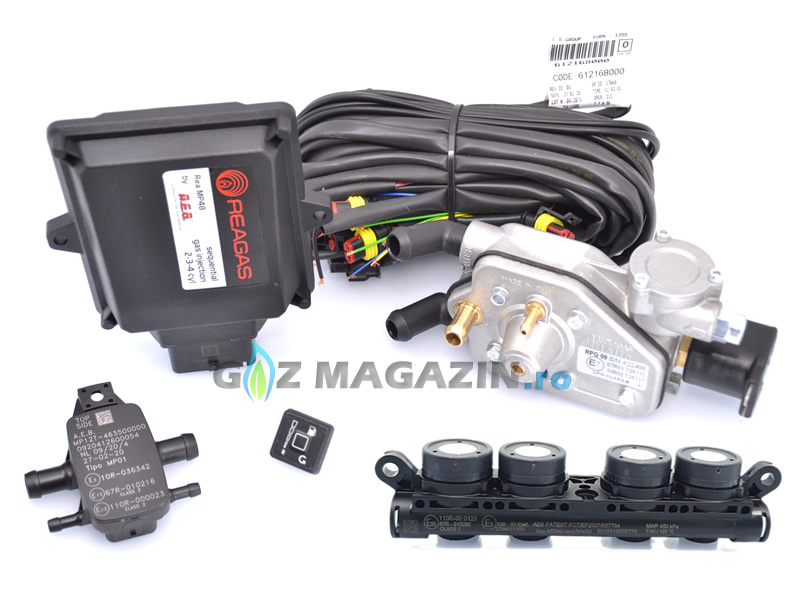

The front kit contains:

1. ECU (computer) - Reagas MP48 (by AEB Italia)

2. Autogas Italia LPG reducer with solenoid valve and gas filter included - maximum supply power 110 kw (150 HP)

3. Ramp 4 AEB injectors with accessories included.

4. Electrical wiring

5. Reducer water temperature sensor

6. MAP sensor

7. Switch

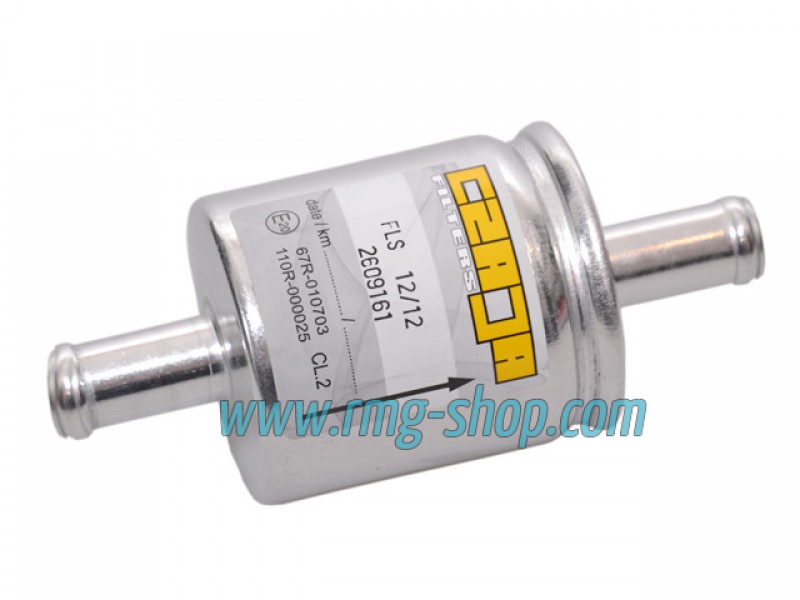

8. Gaseous filter 12x12

Reagas MP48 control unit

Description

P48 is the evolution of the well –known, high-performances and reliable AEB2001PC ECU.
MP48 ECU is designed for 2-3-4 cylinders multipoint timed sequential injection engines. While running on gas, MP48 considers the petrol injection time and the pressure on the rail to calculate the equivalent amount of gas to be injected in the intake manifold to replicate the performance of the engine running on petrol MP48 is equipped with a diagnosis system on every Gas component, whose status can be monitored by the calibration software during the installation of the system and at any moment of the engine lifetime. This feature may prevent malfunctioning problems and makes technical interventions easier.
In addition, the calibration tool offers guided procedures for simplifying the system installation and setting.
Thanks to the combination of MP48 and PTMAP sensor, the installation steps are further simplified and the costs highly reduced.
MP48’s compact case favors an easy installation of the ECU inside the engine compartment. MP48 is equipped with a 48-PIN new generation automotive connector, with an IP high protection degree (6K9K) against water infiltrations and an easy leverage system for cable connection/disconnection. The cable is characterized by a security system on the connector that prevents accidental release of the wiring.

Technical Specifications
Supply voltage: Vbatt=10÷16V
Operating temperature: -40÷110°C
Current absorption with the actuators disabled: Imax ≤0.5A
Current absorption in standby mode: Istandby ≤0.5A
Actuators managed:

up to 4 injectors with the following characteristics Imax=6, Vbatt,max=16V
[Pmax=25W, Imax=2A (power and maximum current for each output with two outputs enabled)
Pmax=50W, Imax=4A (power and maximum current with just one output enabled)]
